33km UAV Video Data Radio Anti-jamming Mesh Radio Support 32 Nodes Share 100Mbps
Technical Specifications
| Model number | HCL602-2 |
|---|
| Modulation | TDD OFDM |
|---|
| Frequency | 566~678MHz and 1420~1530MHz |
|---|
| Bandwidths | 1.4/3/5/10/20/40MHz |
|---|
| Throughput | Maximum 100Mbps |
|---|
| RF transmission Power | 2W*2 |
|---|
| Constellation | QPSK, 16QAM, 64QAM, self-adaption |
|---|
| Sensitivity | -102dBm (1Mbps at 20MHz) |
|---|
| IP data transmission (3 Ethernet port) | Support |
|---|
| Serial data transmission (1 channel RS232 or TTL) | Support |
|---|
| Transmission range | 1~7km (ground to ground), maximum 33km (UAV to ground) |
|---|
| Management | Through Web UI or Control UART |
|---|
| Encryption | AES128-bit encryption |
|---|
| Network mode | Mesh |
|---|
| Movement speed | Support maximum 300km/h |
|---|
| Power input | 12~18V |
|---|
| Power consumption | <2A at 12V |
|---|
| Dimensions | 118.4*61.4*29 mm |
|---|
| Weight | 235g |
|---|
Characteristics
- TDD OFDM wireless video data transceiver support Mesh Networking
- Up to 100Mbps Iperf Throughput
- Control by web browser or control UART
- 3 Ethernet and 1 channel RS232/TTL for data link
- Maximum 33km long distance fhss video data links for UAV/ UAS
- Frequency hopping technology (FHSS) to ensure stable signal communication.
Input/Output Connections
| Connection | Description |
|---|
| Ethernet | 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address |
| Data UART | RS232 data UART (RS232 as default, optional TTL before shipping out), 3PIN PH1.25mm connector |
| Control UART | TTL control UART, 3PIN PH1.25mm connector |
| Power in | XT30PW-M connector |

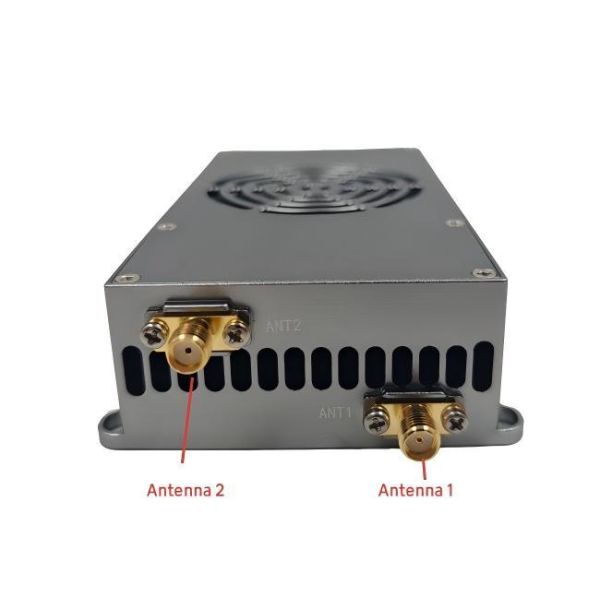

| ANT 1 | Tx/Rx Antenna port, SMA female |
| ANT 2 | Tx/Rx Antenna port, SMA female |
This HCL602 2W IP Mesh Radio supports mesh network with maximum 32 nodes and shared maximum 100Mbps Iperf Throughput.
- Mesh network capacity: supports a maximum of 32 Nodes (2≤N≤32)
- Transport: unicast, multicast, and broadcast are supported
- Time synchronization: self-synchronization without external clock
- Power control: adaptive transmission power adjustment
- Topology: supports multi-hop routing with maximum 32 nodes and 31 hop routing
- Routing: automatic routing adjustment with fixed route configuration option
- Data rate level: adaptive average distribution system rate
- Transmission delay(Note: N is the number of nodes within two hops, hop number: H)
- Common scenario calculation formula, One-way delay indicator formula (MS): 6*H + (5/2) * N/2 *H * 3, Two-way delay multiplied by 2;
- Two-node optimization delay: unidirectional delay of one hop between two nodes <= 10ms;
- Four node chain optimization delay: three-hop single-hop unidirectional delay of four nodes <= 10ms;
- Typical system delay(from big data statistics):
- Six point-chain networking, three hops, unidirectional delay: 50ms;
- 8 points, all points one hop, one-way delay: 36ms;
- 8 points, serial 7 hops: unidirectional 170ms
9. Boot time delay:
- Network establishment delay of logical main control node after startup 20-80s. (Generally, the logical main control node is the node which turned on firstly);
- Cold startup: The network access delay of the logic access node is less than 30 seconds, and the logical main control node signal is received;
- Hot startup: The latency of connecting the secondary node to the network is less than 1s (common one-hop node networking scenario)
Frequently Asked Questions
Q1: Does this Mesh Radio support any other cameras except IP camera?

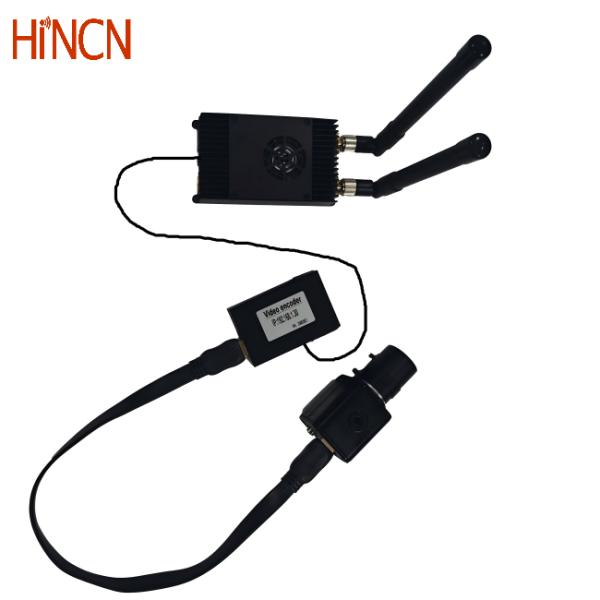

A1: IP camera video can be connected with HCL602 directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with HCL602 via Ethernet connection.
Q2: How to select the frequency band?
A2: 1.Based on the transmission distance (lower frequency can transfer farther), 2. Data rate (higher frequency has a higher rate), 3. Regulations (such as the EU's restriction on 433 MHz)
